Maui Regional ITS Architecture

Service Packages For: EM - EM03-1


  EM03-1

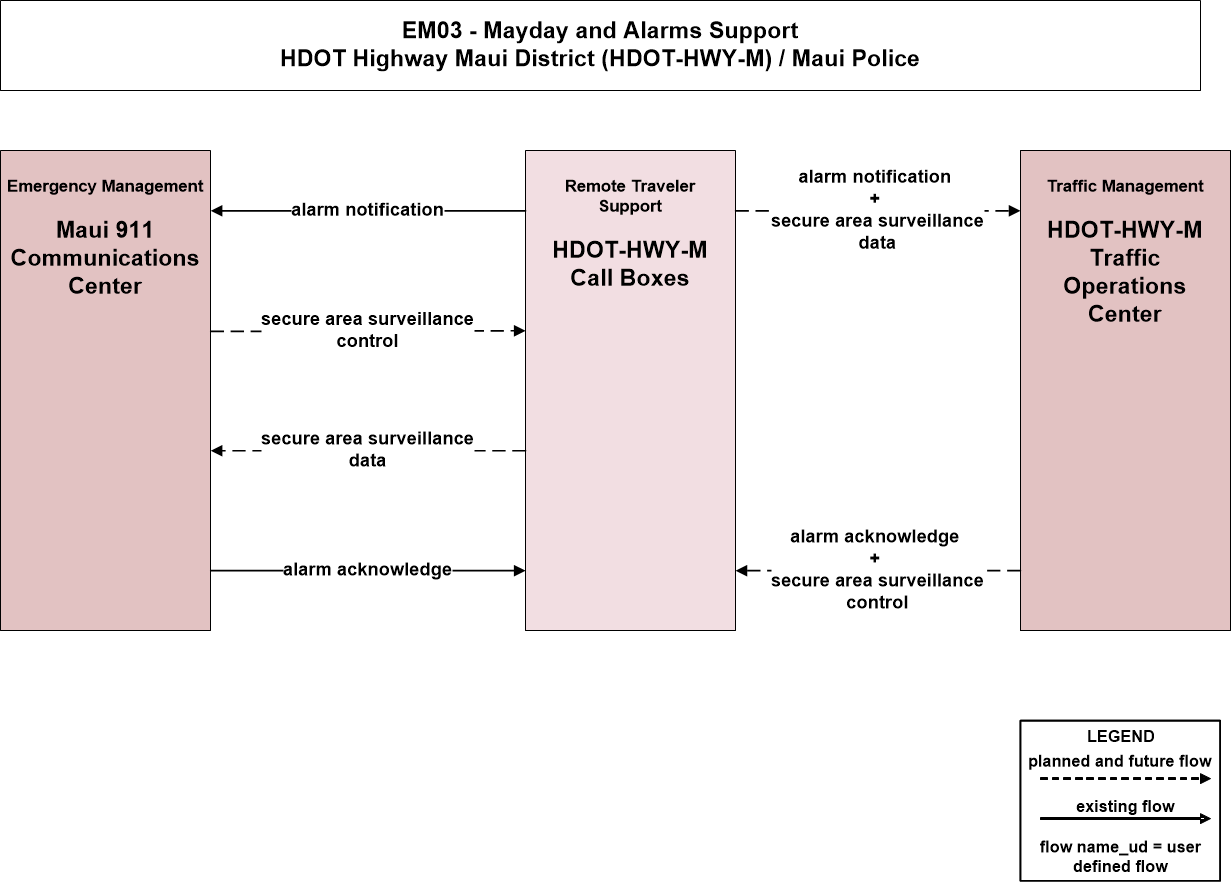

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
HDOT-HWY-M Traffic Operations Center Hawaii Department of Transportation - Highways Division, Maui District
Maui 911 Communications Center County of Maui Police Department
HDOT-HWY-M Call Boxes Hawaii Department of Transportation - Highways Division, Maui District
HDOT-HWY-M Traffic Operations Center Hawaii Department of Transportation - Highways Division, Maui District

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Hawaii Department of Transportation - Highways Division, Maui District HDOT-HWY-M Call Boxes Remote Traveler Security This equipment package provides the capability to report an emergency or summon assistance from secure areas such as transit stops, transit stations, modal transfer facilities, rest stops and picnic areas, park-and-ride areas, tourism and travel information areas, and emergency pull off areas. This package includes interfaces that support initiation of an alarm and presentation of the returned alarm acknowledgement as well as a broadcast message to advise or warn the traveler.
Hawaii Department of Transportation - Highways Division, Maui District HDOT-HWY-M Call Boxes Traveler Secure Area Surveillance This equipment package manages surveillance equipment that monitors secure areas in the transportation system that are frequented by travelers (i.e., transit stops, transit stations, rest areas, park and ride lots, modal interchange facilities, etc.). This package collects the images and audio inputs at the secure area and provides the surveillance information to the Emergency Management Subsystem. The equipment package also provides local processing of the video or audio information, providing processed or analyzed results to the Emergency Management Subsystem. This equipment package provides the same functions as the Field Secure Area Surveillance equipment package.
Hawaii Department of Transportation - Highways Division, Maui District HDOT-HWY-M Traffic Operations Center Center Secure Area Surveillance This equipment package monitors surveillance inputs from secure areas in the transportation system. The surveillance may be of secure areas frequented by travelers (i.e., transit stops, transit stations, rest areas, park and ride lots, modal interchange facilities, on-board a transit vehicle, etc.) or around transportation infrastructure such as bridges, tunnels and transit railways or guideways. It provides both video and audio surveillance information to emergency personnel and automatically alerts emergency personnel of potential incidents.
Hawaii Department of Transportation - Highways Division, Maui District HDOT-HWY-M Traffic Operations Center Center Secure Area Alarm Support This equipment package receives traveler or transit vehicle operator alarm messages, notifies the system operator, and provides acknowledgement of alarm receipt back to the originator of the alarm. The alarms received can be generated by silent or audible alarm systems and may originate from public areas (e.g. transit stops, park and ride lots, transit stations, rest areas) or transit vehicles. The nature of the emergency may be determined based on the information in the alarm message as well as other inputs.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
HDOT-HWY-M Call Boxes secure area surveillance data Maui 911 Communications Center
HDOT-HWY-M Call Boxes alarm notification Maui 911 Communications Center
HDOT-HWY-M Call Boxes secure area surveillance data HDOT-HWY-M Traffic Operations Center
HDOT-HWY-M Call Boxes alarm notification HDOT-HWY-M Traffic Operations Center
HDOT-HWY-M Traffic Operations Center secure area surveillance control HDOT-HWY-M Call Boxes
HDOT-HWY-M Traffic Operations Center alarm acknowledge HDOT-HWY-M Call Boxes
Maui 911 Communications Center secure area surveillance control HDOT-HWY-M Call Boxes
Maui 911 Communications Center alarm acknowledge HDOT-HWY-M Call Boxes
