Maui Regional ITS Architecture

Service Packages For: APTS - APTS02-1

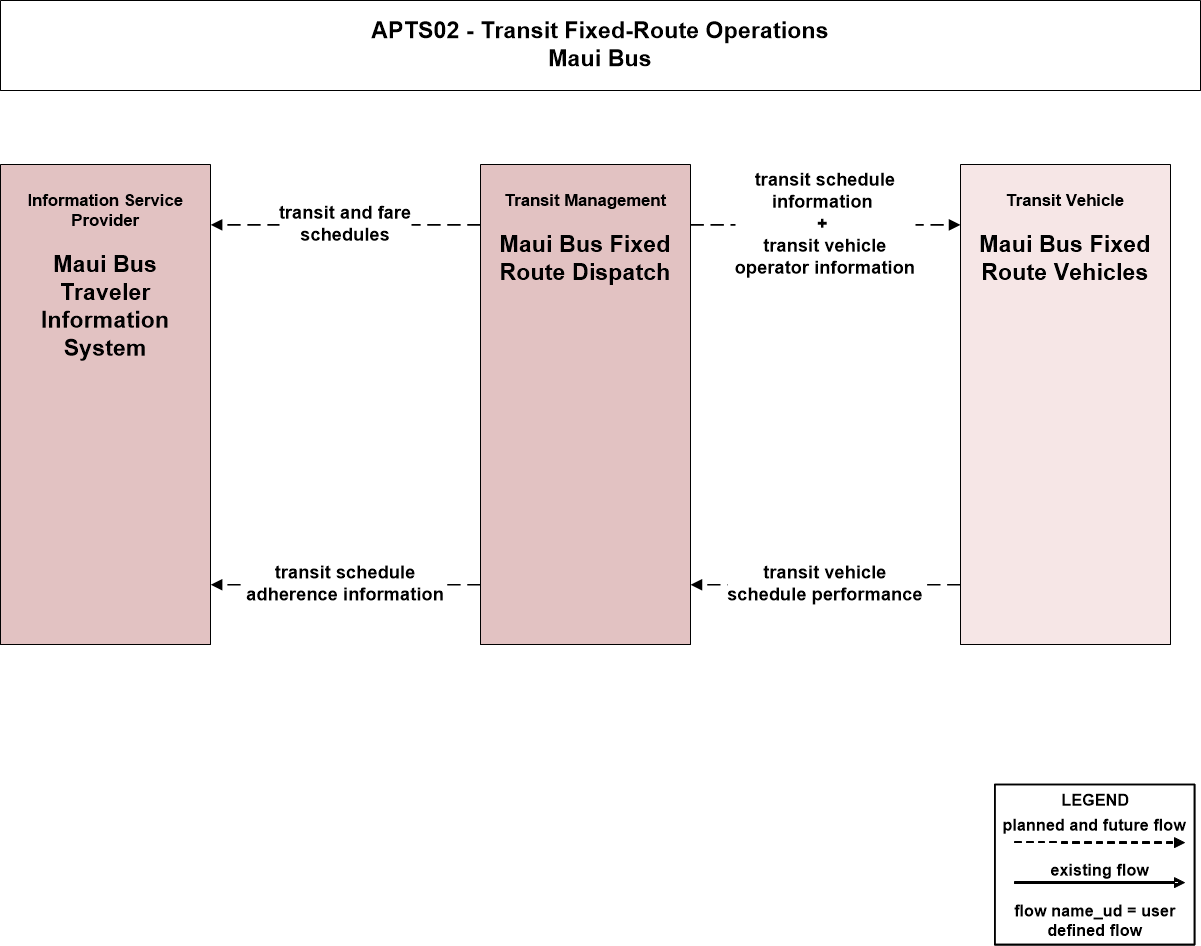

  APTS02-1
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Maui Bus Fixed Route Dispatch County of Maui Department of Transportation
Maui Bus Traveler Information System County of Maui Department of Transportation
Maui Bus Fixed Route Vehicles County of Maui Department of Transportation

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
County of Maui Department of Transportation Maui Bus Fixed Route Dispatch Transit Center Fixed-Route Operations This equipment package manages fixed route transit operations. It supports creation of schedules, blocks and runs for fixed and flexible route transit services. The package allows fixed-route and flexible-route transit services to disseminate schedules and automatically updates customer service operator systems with the most current schedule information. This equipment package also supports automated dispatch of transit vehicles. Current vehicle schedule adherence and optimum scenarios for schedule adjustment are also provided. This equipment package also receives and processes transit vehicle loading data.
County of Maui Department of Transportation Maui Bus Fixed Route Vehicles On-board Schedule Management This on-board equipment package monitors schedule performance and identifies corrective actions when a deviation is detected. It provides two-way communication between the transit vehicle and center, enabling the center to communicate with the vehicle operator and monitor on-board systems.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Maui Bus Fixed Route Vehicles transit vehicle schedule performance Maui Bus Fixed Route Dispatch
Maui Bus Fixed Route Dispatch transit vehicle operator information Maui Bus Fixed Route Vehicles
Maui Bus Fixed Route Dispatch transit schedule information Maui Bus Fixed Route Vehicles
Maui Bus Fixed Route Dispatch transit schedule adherence information Maui Bus Traveler Information System
Maui Bus Fixed Route Dispatch transit and fare schedules Maui Bus Traveler Information System


The Hawaiian language uses two diacritical markings. The 'okina is a glottal stop; and the kahako is a macron. The State of Hawaii strongly encourages the use of Hawaiian diacritical markings. The National ITS Architecture tool, Turbo Architecture, does not allow for the Hawaiian diacritical markings to be input and as such, customized service package diagrams, operational concepts and other outputs from Turbo are unable to reflect the diacritical markings. To ensure consistency in this ITS Architecture website, no Hawaiian diacritical markings will be used.
